Image-To-Text

🖼️ Image To Text (OCR using Python)

Convert images into editable and searchable text using Tesseract OCR and Python. This tool extracts text from images (like scanned documents, screenshots or handwritten notes) with high accuracy. Using CustomTkinter for graphical user interface.

📌 Technologies Used

Tkinter

Tkinter is Python’s standard GUI library used for building cross-platform desktop applications.

CustomTkinter

CustomTkinter extends Tkinter with:

• Modern, consistent design
• Light & Dark themes
• High-DPI scaling
• Fully customizable modern widgets

Together, they ensure a smooth UI experience on Windows, macOS and Linux.

Component	Description
Language	Python 3.x
GUI Framework	CustomTkinter
Core Libraries	Tkinter, CustomTkinter
Software Engine	Tesseract-OCR

🚀 Features

• 📸 Extracts text from any image file (.jpg, .png, .bmp etc.)
• 🧠 Uses Tesseract OCR for optical character recognition
• 💬 Supports multiple languages (English by default)
• 🪶 Lightweight, fast and easy to integrate into other projects
• 📂 Batch image processing supported
• 💻 Cross-platform (Windows, Linux, macOS)

🧰 Installation Steps

Step 1. Install Tesseract OCR

Download and install Tesseract-OCR:

• 🔗 Tesseract OCR GitHub
• 🔗 Windows Installer (UB Mannheim)

After installation, find the installation path (for example): C:\Program Files\Tesseract-OCR\tesseract.exe
Add this path into your python script or system PATH.

Step 2. Clone the repository

git clone https://github.com/iamx-ariful-islam/Image-To-Text.git
cd Image-To-Text

Step 3. Install Python Dependencies

The requirements.txt file, lists of all the Python libraries that “image to text” depends on and installs those packages from the file:

pip install -r requirements.txt
# or
sudo pip install -r requirements.txt

Step 4. Run the Application

python main.py

📂 Folder Structure

Here’s the structure of the Image To Text project:

image-to-text/
│
├── screenshots/
├── example.png
├── main.py
├── notes.txt
│── LICENSE
├── README.md
└── requirments.txt

🖼️ Screenshots

Here are some screenshots of the Image To Text project:

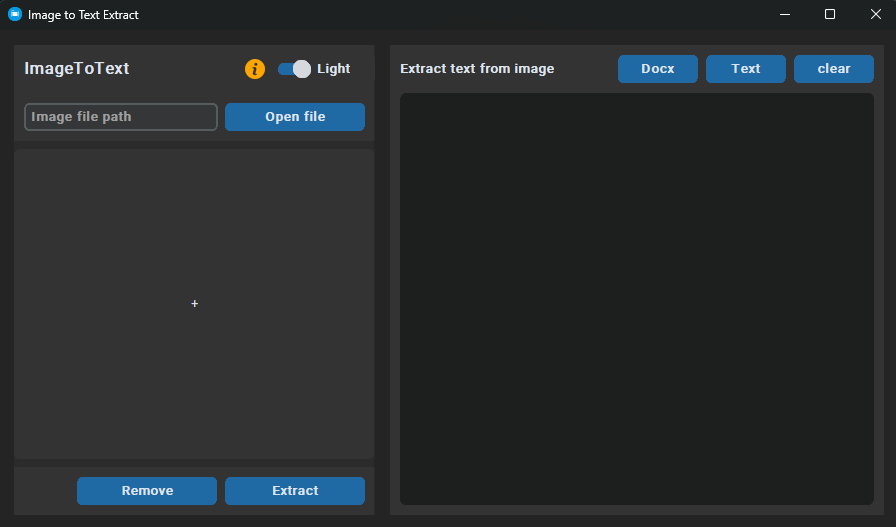

Main Window

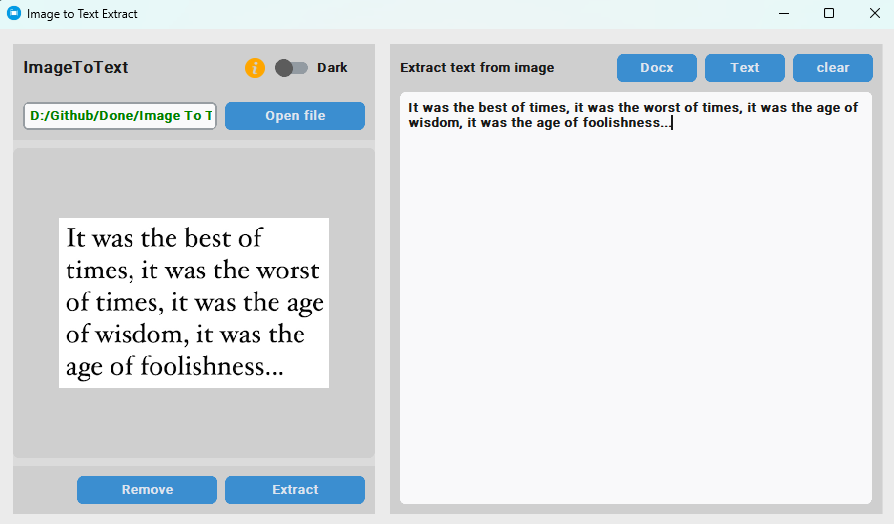

Output Main Window

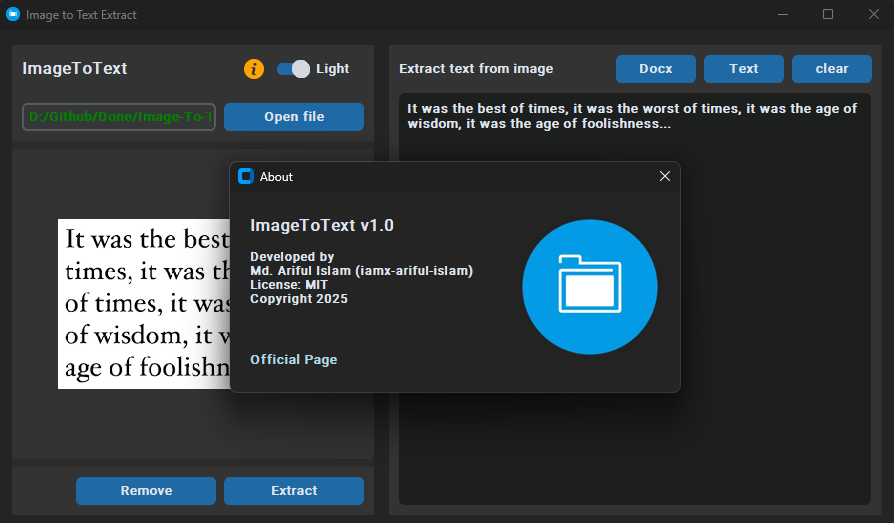

About Main Window

📄 Notes File (How it works)

View full notes here: 👉 notes.txt

1. Download and install ‘Tesseract OCR’ on your computer.
2. Locate the ‘Tesseract OCR’ installation path after installation.
3. Add the ‘Tesseract OCR’ installation path to your program configuration or environment variables.
4. Install the required Python packages using: ‘pip install -r requirements.txt’

🤝 Contributing

Contributions, suggestions, and feedback are always welcome! ❤️
To contribute:

1. Fork the repository
2. Create a new branch (feature/new-feature)
3. Commit your changes
4. Push and submit a Pull Request

💬 You can also open an issue if you’d like to discuss a feature or report a bug.

🌐 For more or connect with me



📜 License

The MIT License (MIT)

💖 Thank You for Visiting!

“Good design is about making things simple yet significant”
— Md. Ariful Islam
